상세 정보 |
|||
| 헤드 재료: | 에폭시 | 리드선: | 0.5 주석 도금 42 합금 |
|---|---|---|---|
| 머리 크기: | Φ2.4×Φ3.7mm | 와이어 길이: | 17mm |
| R25C: | 0.5KΩ-2000KΩ | 비 가치: | 3000K-4500K |
| Ｒ 허용한도: | ±1%, ±2%, ±3%, ±5% | 비 허용한도: | ±0.5% ~ ±3% |
제품 설명

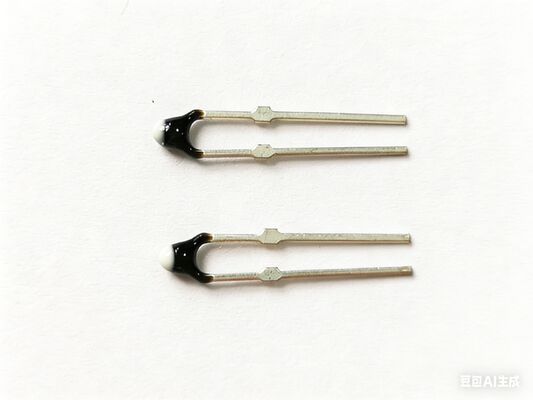

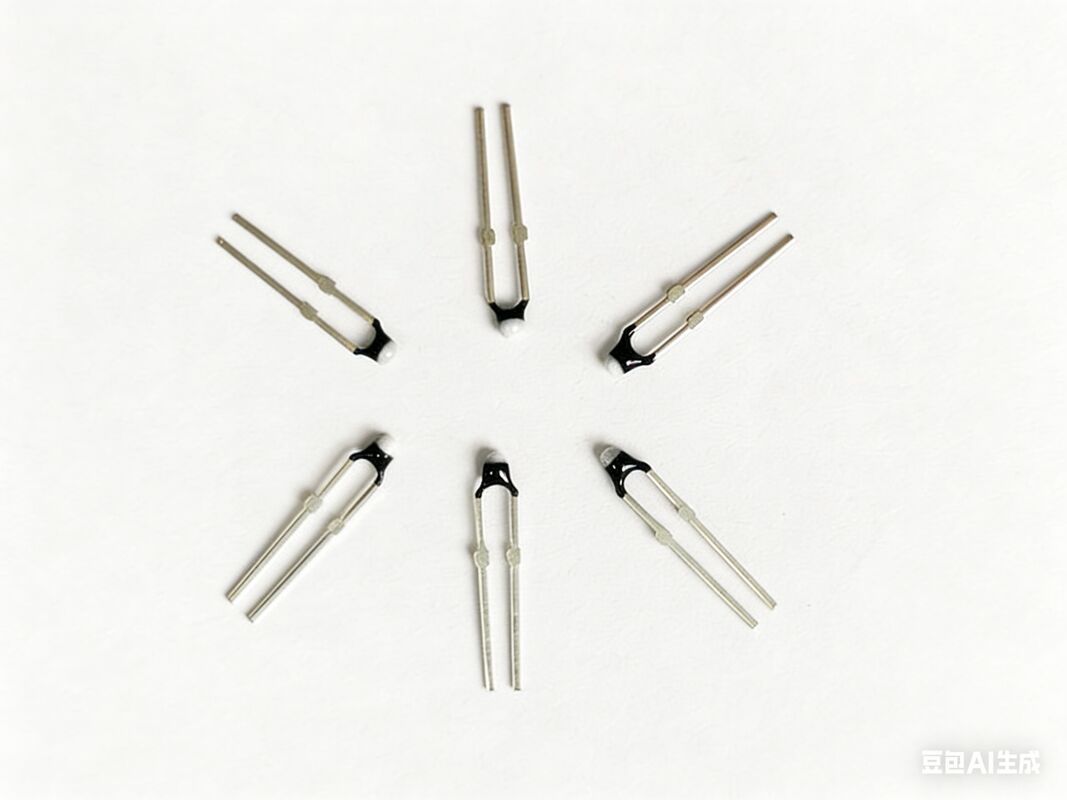

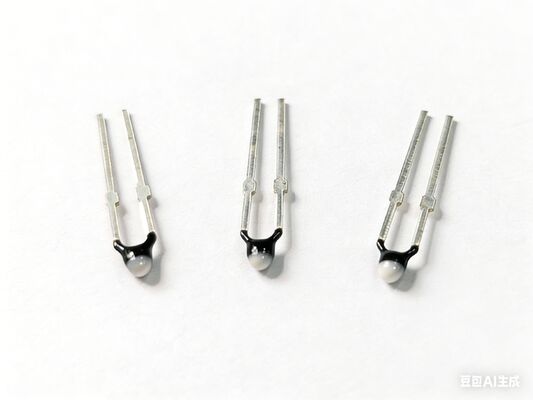

103AT-2 Series Epoxy Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape
Product Feature:
Uniform shape facilitates automated assembly / Long term reliability
Application:
Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,
fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,
vending machines, refrigerated display cases, agricultural equipment
Caution:
• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).
